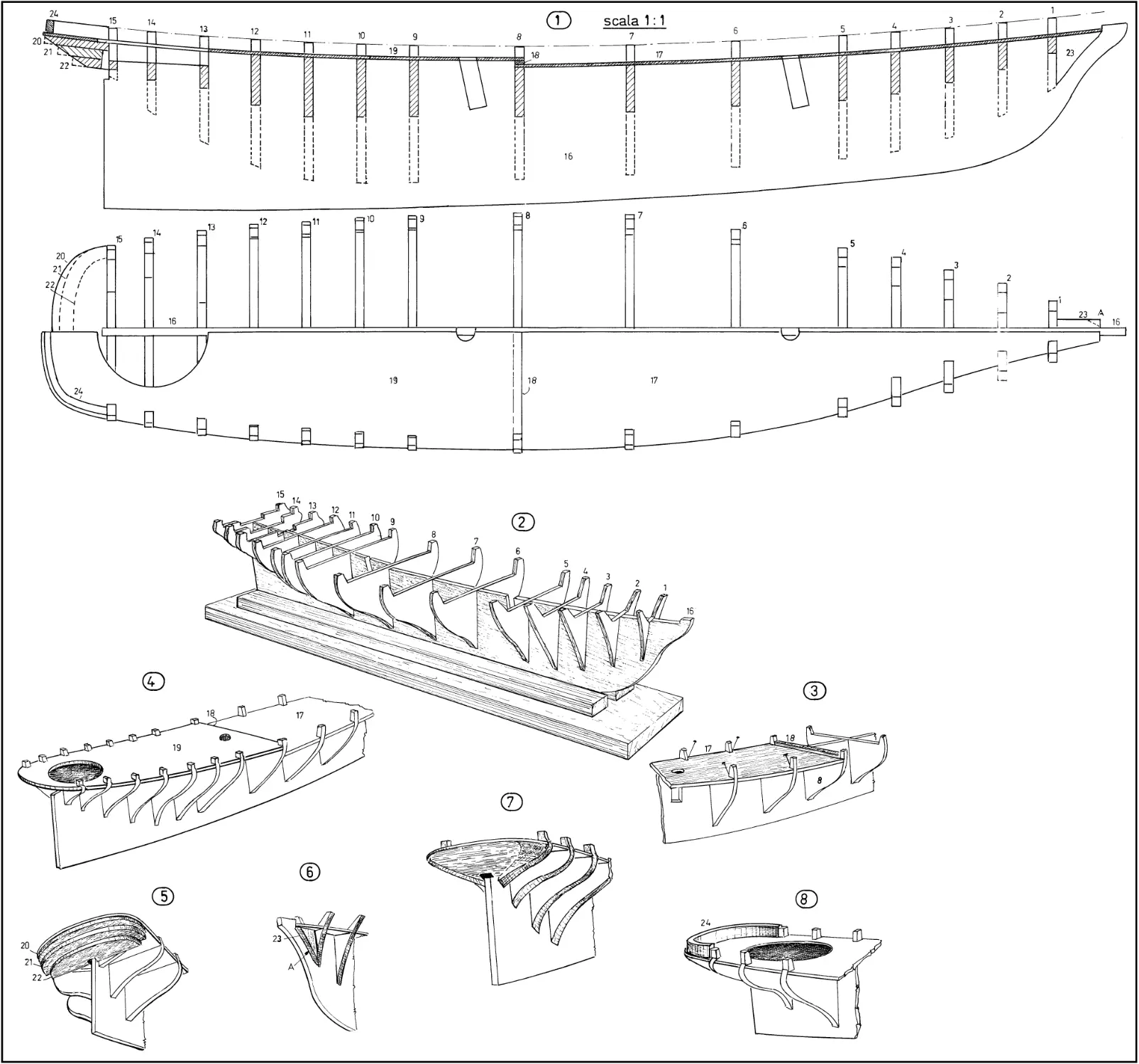

Table 5
The masts must be assembled separately, taking care of their perfect align-
ment. The position of the caps ano of the connection collars of the booms
are indicated on the drawing. After the assembly, the masts have to be glued
in the special holes on the deck and must be kept in position by means of
provisional bindings knotted to the ends of the masts and to the channels
(take care of the correct inclination towards the pooo); of course yards,
booms ano gaffs shall not be glued.
13) Prepare the masts according to the form and to the sizes indicated on
the table 4. Glue on the mast 501 the cans 510, the collar 511, the cap 512,
then mount the part 502, with the collar 513, into the caps 510 ano 512,
glue the parts 514. Make the connection 515 from brass wire 0 1mm. and Link
it to the cap 512 (fig. 1). Paint matt white the upper part of the mast as
indicated on the drawing. Introduce on the mast, without glueing, the 12
rings 516, glue the ring 517 supporting the boom and the belaying pin-rack
518. Introduce the bush 513, glue the complete mast on the hull taking care
that the bush is well in contact with the deck (fig. 2); paint white the
part of the mast between the ring 517 and the deck. In the same way glue on
the mast 503 the collars 520, 521 and 522, bore and glue the little ring
523, mount the belaying pin-rack 518, the mast-foot 519, paint like the
main-mast and glue onto the hull (figs. 2-3).
14) Glue on the bowsprit end 504 the collar 524, the cap 525 and link it to
the part 526 (fig. 4), paint white the part of the bowsprit with square sec-
tion and black the part with round section. Adjust the prow sector of the
planking and of the handrail so that the bowsprit fits exactly; assemble the
bowsprit on the hull glueing the back end in the square opening of the cap-
stan and the central part leaning on the ram of the keel and on the plan-
king of the bulwark (fig. 5).
15) Glue in the milling on the boom 505the joint 527 (fig. 6), glue the col-
lars528, 529 and 530, bore and glue the little ring 531 (fig. 6), paint
white comoletely.
16) Glue on the gaff 506 the collars 532-533 and the part 534, bore and glue
the little rings535, paint white completely. Prepare in the same way the
gaff 507 glueing the elements 536, 537 and 535. Mount on the jib-boom 508
(not painted) the collar 538, introduce the ooom into the cap 525 ano fasten
the back end to the windlass 70 (fig. 5).
17) Glue and tie on the deck and on the masts all the blocks, the cleats
and the little rings as indicated on the drawing. All the bindings must be
glueo with dilute vinavil. In order to fix the rings with shaft, bore with
a 0,7 mm. drill where it is requested, bend the shaft of the little ring,
glue and press in the nole (fig. 7). The different types of binding are .il-
lustrated on fig. 8, 9 and 10. All the collars have generally 4 connections:
cut off with a pair of pincers those which are not useful. Complete assem-
bling all the little rings 541 on the hull sides ano the connection 542 on
the prow.
On the following table: Prepare the ooom 509 of the jib assembling the rings
540 and the collar 539, oaint white.
Rigging
The rigging is set according to the numerical oroer. It must be strained
but must absolutely not force on the masts, the knots have to be glued. Oo
not try to operate the running rigging: it is advisable to fix the ropes
with a droo of glue to the blocks or to the belaying pins in the right posi-
tion. The shrouds 600... etc. are set in couoles, alternatively on the rignt
and on the left of the mast, they pass through the cross-trees and end with
the dead-eyes. The course of the rigging is represented with numbers and
symbols indicating the rigging, the starting point, the various passages
and the end point. The letter 0 near the number of the described rigging,
means that this is double, that is one on port and one on starboard. The
esample: 604 0 = 603+72+603+72+603+72+602 (fig. 11) means that the rigging
6Q4 is douole. has one end with a knot, enters from the deck side, in the
first hole of the dead-eye 603, passes through the first nole of the dead-
eye 72, again through the deao-eye 603, through the dead-eye 72, through
the dead-eye 603, through the deao-eye '2 ends tied to tne stay 602 ana
the relative course is illustrated in fig. Ц
The Letters ”L” ano ”R" means respectively '.eft and rignt.
№ Denominaz.Quant .Mat .Misure С о d i c e № Denominaz . Quant .Mat Misure Codice
501 Albero maes. 1 TR 8x382 6177 618 Bozzello as. 1 NO 1x3 7015
502 Albero g a b b i a 1 TR 4x205 6173 619 Strag lio tr . 2 CO 0,80 6207
503 Albero trim. 1 TR 3x375 6177 620 Attacco trip . 1 MET 6 8330
504 Bompresso 1 LN 5x5x157 6090 621 Strag lio 1 CO 0,80 6207
505 Boma 1 TR 5x273 6174 622 Anello ovale 2 OTN 5 0318
506 Picco maestrol TR 4x145 6173 623 Atta с с о s и c . 1 MET 14 8297
507 Picco trinch.1 TR 4x125 6173 624 Anello trian . 1 OTN 5 5036
508 Asta del f. 1 TR 3x245 6172 625 Straglio bom.2 CO 0,40 6203
509 Boma fiocco 1 TR 3x230 6172 626 Bozzello 2 NO 1x4 7016
510 Testa d i morol MET 5 + 4 8325 627 Bozzello 2 NO 2x4 7023
511 Collars 1 MET 5 0327 628 Tirante 2 CO 0,25 6201
512 Testa di moral MET 4 + 4 8276 629 Galloccia 2 MET 8 0165
513 Collars 1 MET 3 0325 630 Sartia 2 CO 0,40 6203
514 Maschetta 2 MET 12x12 8326 631 Redancia 4 MET 5 7012
515 Attacco str. 1 OTN 1 - 632 T irante 2 CO 0,25 6201
516 Anelli vele 24 MET 10 8327 633 Bozzello s/c 2 NO 1x3 7015
517 Attacco boma 1 MET 8 0417 634 Galloccia 2 MET 8 0165
51B Cavigliera 2 MET 8 5018 635 Bozzello s/c 2 NO 1x3 7015
519 Piede d'alb. 2 MET 8 5019 636 Galloccia 2 MET В 0165
520 Collars 1 MET 5 0327 637 Sartia 2 CO 0,25 6201
521 Collars 1 MET 5 0327 638 Galloccia 2 MET 8 0165
522 Collars 1 MET 4 0326 639 Martingale 1 CO 0,40 6203
523 Anello 1 OTN 3x10 0177 640 Raddoppio m. 2 CO 0,40 6203
524 Collars 1 MET 4 0326 641 Bozzello 2 NO 1x3 7015
525 Testa di morol MET 4 + 3 8328 642 Tirante 1 CO 0,25 6201
526 Pennaccino 1 OTN 22 5037 643 Bozzello 2 NO 1x3 7015
527 Snodo boma 1 MET 8 0417 644 Galloccia 2 MET 8 0165
528 Collars 1 MET 5 0327 645 Bertocci 10 PL 2 0072
529 Collars 1 MET 4 0326 646 Orizza del p.l CO 0,40 6203
530 Collars 1 MET 3 0325 647 Bozzello 1 NO 1x4 7016
531 Ans 11 о 1 OTN 3x10 0177 648 Bozzello 1 NO 2x4 7023
532 Collars 3 MET 4 0326 649 Bozzello 1 NO 1x4 7016
533 Collars 1 MET 3 0325 650 Caviglia 4 MET 10 0172
534 Passacavo 2 MET 6 8323 □ 51 Ama nt iglio 1 CO 0,25 6201
535 Anelli c/gam.6 OTN 3x10 0177 652 Bozzello 1 NO 3x4 7031
536 Collars 2 MET 4 0326 653 Bozzello 2 NO 1x4 7016
537 Collars 2 MET 3 0325 654 Bozzello 1 NO 1x4 7016
538 Collars 1 MET 3 0325 655 Orizza boma 1 CO 0,40 6203
539 Collars 1 MET 3 0325 656 Bozzello 1 NO 1x4 7016
540 Anello 1 OTN 3x10 0177 657 Rin v io 1 CO 0,40 6203
541 Anelli fian. 4 OTN 3x 10 0177 658 659 Bozzello 1 T irante 1 NO CO 2x4 0,25 7023 6201
600 Sartia 4 CO 0,80 6207 660 Bozzello 1 NO 1x4 7016
601 Bigotta 4 NO 5 7003 661 Galloccia 1 MET 8 0165
602 Sartia 2 CO 0,80 6207 662 Braccio 2 CO 0,25 6201
603 Bigotta 2 NO 5 7003 663 Bozzello 2 NO 1x4 7016
604 T irante 6 CO 0,25 6201 6 64 Bozzello 2 NO 2x4 7023
605 Asta 4 OTN 1 , 5 0087 665 Galloccia 2 MET 8 0165
606 Strag lio 1 CO 0,80 6207 666 Bertocci 10 PL 2 0072
60? Sliaglio 1 CO 0,§0 620? 667 Orizza 1 CO 0,40 '620'3
608 Sartia 4 CO 0,80 6207 668 Bozzello 1 NO 1x4 7016
609 Bigotta 4 NO 5 7003 669 Bozzello 1 NO 2x4 7023
610 Tirante 4 CO 0,25 6201 670 Bozzello 1 NO 1x4 7016
611 Bozzello s/p 1 NO 1x3 7015 671 Caviglia 2 MET 10 0172
612 Galloccia s/bl MET 8 0165 672 Amantiglio 1 CO 0,25 6201
613 Bozzello alb . 1 NO 1x3 7015 673 Bozzello 1 NO 3x4 7 031
614 Bozzello s/b 1 NO 1x3 7015 674 Bozzello 2 NO 1x4 7016
615 616 617 Bozzello s/t 1 Bozzello s/t 1 Bozzello bompl NO NO NO 2x3 2x4 1x3 7022 7023 7015 675 Bozzello 1 NO 1x4 7016
yacht
AMERICA 2606
______________________соъие._
MILANO- ITALY
^зе-ьмато DA
702
&
710
705
676
702
Percorso delle manovre.
524
721
618
716
508
504
715
721
716
617
712
633
Z1& 618
—
504
0
0
(!
X
Q
0
Tavola 6
Preparazione e montaggio delle vele
Ricalcaresullatela la traccia delle vele cuciturecomprese, PRIMADI RITAGLIARLE eseguire le cuciture
seguendo il contorno etutte le tracce. Cucire e incollare lungo il bordo un cordino da 0.80; montare sulle
vele 677+692+702 gli occhielli 676; praticare dei piccoli fori nella posizione indicata sulle vele, infilare
gli occhielli e ribadirli leggermente con una punta conica appoggiata nel foro dell'occhiello, dalla parte
oppostaallaflangia. Incollare i gerli sullefascedelle vele677+692+702, questisonodei pezzettidi corda
da 0.25 passanti attraverso la vela e incollati al centra
Tutte le vele devono essere bianche.
711
721
712
509 703 '540
617
522 a b
508
713 -а-
$04
716
509
703 509
717
633
713
702
50d
Table 6
Preparation and setting of the sails.
Transfer the trace of the sails, including the seams, to the cloth. BEFORE CUTTING THEM, make the
seams following the contour and all the other traces. Sew and glue along the edge a 0.80 rope; assemble
the eyelets 676 on the sails 677-692-702: make some small holes in the position indicated on the sails,
introduce the eyelets and slightly rivet them leaning a conical head through the hole of the eyelet, from
the opposite side of the flange. Glue some pieces of rope 0,25 on the bands of the sails 677, 692 and
702, they pass through the sails and are glued in the middle.
All the sails must be white.
Table 6
Preparation et montage des voiles
Transferer sur la table la trace des voiles, у compris les coutures. AVANT DE LES COUPER, executer
les coutures en suivant le contour et toutes les traces.
Coudre et coller le long du bord une ficelle, 0,80; monter sur les voiles 677, 692 et 702 les oeillets 676:
pratiquer de petits trous dans la position indiqueesurles voiles, enfiler lesoeillets et les river legerement
avec une pointe conique appuyee dans le trou de I’oeillet, de la partie opposee a la bride. Coller les
garcettes sur les bandes des voiles 677, 692, 702; II s'agit de pieces de corde 0,25 passant a travers la
voile ed collees au milieu.
Toutes les voiles doivent etre blanches.
Tafel 6
Vorbereitung und Bau der Segel.
Den Umriss der Segel und die Zeichen pausen, sie auf die Leinwand ubertragen. BEVOR MAN SIE
AUSSCHNEIDET, nach den Zeichen der Umrisse nahen. Nahen und, urn den Umriss, einem Bindfaden
0,80 kaleben; auf'die Segel 677, 692, 702 die Osen 676 legen: in der auf den Segeln bestimmten Lage
kieine Locher machen, die Osen einstecken und sie mit einem in Loch der Ose gelegten Stiff, in
entgegengesetzter Seite der Flansche, leicht nieten. Auf die Streifen der Segel 677, 692, 702 Seilstucke
0,25 kleben, die durch die Segel laufen und werden in der Mitte eingeklebt.
Alle Segel bleiben weiss.
678 = 677+512. F.1 703 = 539+702+509+702...540 = F.2
679 = 529+677+505+677...527 - F.2 705 = 702+621 = F.7
680 - 506+677+506+677...535 = F.3 707 = 708+616+708+616+709+671R = F.8
681 = 614+682+614+614 = F.2+4 710 = 702+711
684 - 613+685+613+686+650C = F.5 712 = 708+711+617+713 = F.7+8
687 = 683+650 714D = 635+704+635+636
688 = 535+689 - F6 716 - 715+618+717
690 - 683+534Ь+689+691 +65Ae = F.3+6 718 = 719+6l5+719+615+720+671e
693 = 692+516 = F1 721 D = 715+633+634
694 = 537+692+507...692,..535 - F.3 723 = 612+611+612 = F.3
695 = 692+696+671C 725 - 650f+5C2+650f = F.5
697D - 699+700+699+700+699+701
N. Denominazione Quant. Mater. Misure Codice N. Denominazione Quant. Mater. Misure Codice
676 Occhielli 120 OTN 2 0319 701 Galloccia 2 MET 8 0165
677 Randa maestra 1 ТЕ = 0298 702 Fiocco 1 ТЕ = 0298
678 Inferitura 1 CO 0.40 6203 703 Inferitura 1 CO 0.40 6203
679 Inferitura 1 CO 0.40 6203 704 Bozzello 2 NO 1x4 7016
680 Inferitura 1 CO 0,40 6203 705 Anelli 26 OTN 4 0178
681 Caricascotta 1 CO 0.26 6201 706 Ganci 6 MET 5 8301
682 Bozzello 1 NO 1x4 7016 707 Drizza 1 CO 0.25 6201
683 Controranda 1 ТЕ — 0298 708 Bozzello 1 NO 1x4 7016
684 Drizza 1 CO 0.25 6201 709 Bozzello 1 NO 1x4 7016
685 Bozzello 1 NO 1x3 7015 710 Braccio 1 CO 0.25 6201
686 Bozzello 1 NO 1x4 7016 711 Bozzello 1 NO 1x3 7015
687 Cancabasso 1 CO 0,25 6201 712 Caricabasso 1 CO 0,25 6201
688 Braccio 1 CO 0.40 6203 713 Galloccia 1 MET 8 0165
689 Bozzello 1 NO 1x3 7015 714 Scotta 2 CO 0.25 6201
690 Scotta 1 CO 0.25 6201 715 Controfiocco 1 ТЕ = 0298
691 Bozzello 1 NO 1x4 7016 716 Caricabasso 1 CO 0,25 6201
692 Randa trinchetto 1 ТЕ - 0298 717 Galloccia 1 MET 8 0165
693 Inferitura 1 CO 0.25 6201 718 Drizza •1 CO 0.25 6201
694 Inferitura 1 CO 0.40 6203 719 Bozzello 1 NO 1x3 7015
695 Caricabasso 1 CO 0,40 6203 720 Bozzello 1 NO 1x4 7016
696 Bozzello 1 NO 1x4 7016 721 Scotta 2 CO 0.25 6201
697 Scotta 2 CO 0.25 6201 722 Bandiera picco 1 ТЕ 0203
698 Anello 1 OTN 4 0178 723 Drizza 1 CO 0.25 6201
699 Bozzello 2 NO 2x4 7023 724 Bandiera maestra 1 ТЕ 0203
700 Bozzello 2 NO 2x4 7023 725 Drizza 1 CO 0.25 6201
в.сепкВ yacht AMERICA
2606
MILANO- ITALY
№ Denominazione Quantita Mater. Misure Codice
74 DECORAZIONE PRUA 1C MET 36 8096
75 DECORAZIONE POPPA 1 MET 50x16 8095
76 OCCHIELLI 4 OTN 2,5 8377
77 ANCORA 2 MET 11 8331
78 CATENA 2 OTN 1 5 0102
79 SUPPORTO 1 FG 9015
80 TARGHET ГА 1 MET 8094
81 FANALE DI POSlZlONE 1 MET 15 0406
Soli iHlitl— yacht AMERICA 2606 ГСТТСЬ
MILANO - ITALY iLSESAlATU 32 A TAv/oLxkN” A
